產品名稱: 亞馬遜起泡器

型號系列:Amazon

品牌:YSI

產地:美國

價格:**終成交價格需聯系客服








亞馬遜起泡器的設計考慮到了簡單性，是長期水位監測站點的理想系統。它可以用作具有內部數據存儲的獨立系統，也可以用作連接到任何制造商數據記錄器的傳感器。使用基于瀏覽器的圖形用戶界面和 PC、平板電腦和智能手機上的所有標準 Web 瀏覽器輕松配置和收集數據。它堅固耐用，技術先進的系統使 Amazon Bubbler 成為實時監控和數據收集的有吸引力的解決方案。

亞馬遜水位起泡器

新的亞馬遜水位起泡器是**的水位和長期流量監測系統。多年 YSI 制造和支持/服務支持的 WaterLOG 產品使亞馬遜成為起泡器和水位項目的必備品。

美國YSI亞馬遜起泡器Amazon概述

Amazon 提供了一個連續的氣泡和一個集成的壓力傳感器，用于測量將氣泡推出孔口線所需的壓力，即管道壓力。然后以 psi 測量的管線壓力值轉換為所需的測量單位以表示水位。

Amazon 可用作獨立單元或傳感器，具有全套通信協議，包括 SDI-12、通過 RS-485 或 TCP 的 MODBUS 和 4-20mA。Amazon 不需要特殊的軟件，并且可以通過可選的顯示和/或 Web 瀏覽器 GUI 輕松配置。YSI 的水位專業團隊已經提供了 20 多年的起泡器支持。

亞馬遜起泡系統獨有的主要功能：

獨立系統 - Amazon 可用作連接到其他記錄器設備的傳感器；數據記錄器、PLC、RTU 等。但是，在節省大量成本的同時，它也可以作為獨立設備使用，無需外部記錄設備。亞馬遜記錄的數據值可以直接復制到 USB 閃存驅動器并導入 PC。
基于瀏覽器的軟件——亞馬遜首創的易于使用的軟件是基于瀏覽器的，無需在 PC 上安裝專有軟件。從任何具有 Wi-Fi 或 USB 連接功能的互聯網設備訪問亞馬遜軟件。
鍵盤顯示器 -作為可選接口，亞馬遜使用 Sharp® Memory LCD 顯示器。這為連續顯示數據提供了便利，同時節省了低功耗的成本。該顯示器作為亞馬遜的一個選項提供。對于不需要外部顯示器的應用程序，可以購買不帶顯示器的亞馬遜。
通信 -提供多種通信選項以確保 Amazon 可以與任何數據記錄器、PLC 或 RTU 連接。這些選項包括：SDI-12、MODBUS（通過 IP 或 RS-485）和 4 至 20 mA。通過以太網端口，亞馬遜可以通過互聯網將數據直接推送到我們的數據托管解決方案HydroSphere。
測量范圍 -提供三個范圍選項以提供**的測量精度。具有業界**的滿量程 0.02% 的精度；0 至 10 m 范圍提供 ±2 mm 的精度，0 至 20 m 范圍提供 ±4.25 mm 的精度，0 至 35 m 范圍提供 ±7 mm 的精度。
美國YSI亞馬遜起泡器Amazon規格

準確性
壓力：在溫度范圍內小于或等于滿量程輸出 (FSO) 的 0.02%

自動穩定:每年漂移小于 FSO 的 ±0.05%

起泡器氣體輸送
氣流技術：恒質量技術
氣體流量控制：氣泡率是用戶可編程的，從 30 到 120 個氣泡

認證:NEMA 4 外殼

壓縮機:活塞壓縮機，低占空比（每年 15 小時典型運行時間，每分鐘 60 個氣泡進入 12 英尺（3.65 m）（不包括凈化）

連接/通訊:SDI-12、RS-485、4-20mA 輸出、*Cell 調制解調器目前正在開發中

連接器:快速連接鳳凰連接器；2 位快速連接電源，5 位快速連接 SDI-12、4 至 20mA 和 RS-485；壓力入口：1/8” (3.81 cm) 內螺紋 NPT

材料:外殼：鋁，大氣通風口：燒結青銅，#10-32

測量范圍:
0 到 15 PSI：深度 - 0 到 34.6 英尺（10.54 m），精度 - ±0.007 英尺（2.1 毫米）
0 至 30 PSI：深度 - 0 至 69.20 英尺（21 m），精度 - ±0.014 英尺（4.26 毫米）
0 至 50 PSI：深度 - 0 至 115.34 英尺（35.15 m），精度 - ±0.02333 英尺（7.11 毫米）

工作溫度:-40° 至 +60° C

力量:10.0 至 16.5 V 直流

清除功能:吹掃壓力水平：用戶可選擇 30 PSI 至 90 PSI；選項：手動、SDI 驅動吹掃、吹掃持續選項 (10-30S)、自動/可編程

尺寸:
12.25 英寸長 x 8.75 英寸寬 x 5.75 英寸高 311.15 毫米長 x 222.25 毫米寬 x 146.05 毫米高；重量：12.0 磅（5.44 千克）

貯存溫度:-60° 至 + 80° C

保修單:2年

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

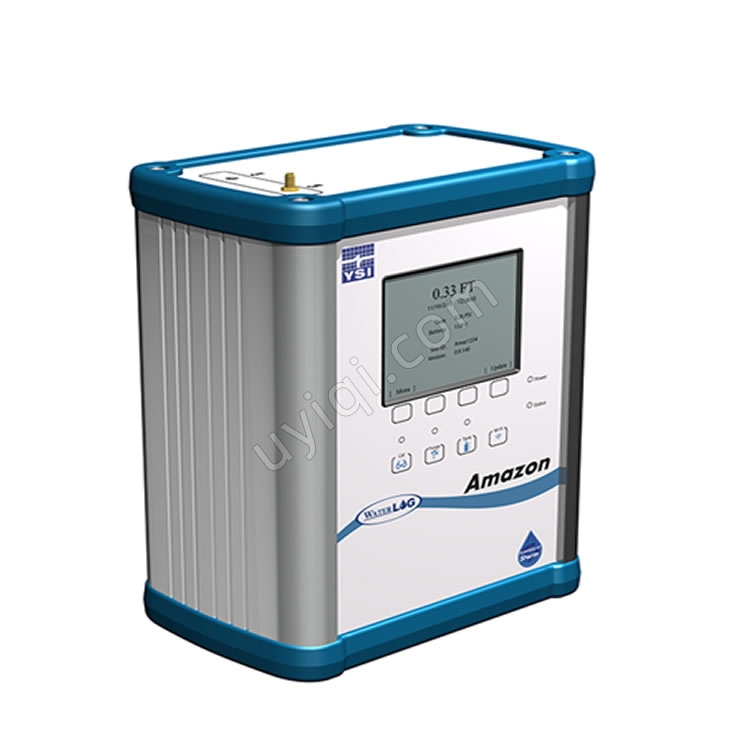

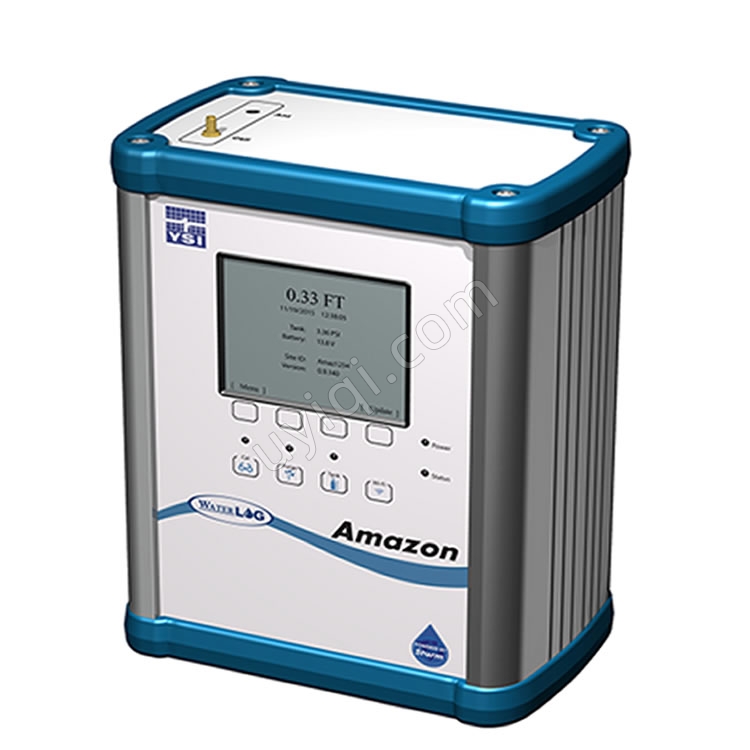

Designed with simplicity in mind, the Amazon bubbler is the ideal system for long-term, water level monitoring sites. It can be used as a stand-alone system with internal data storage, or as a sensor connected to any manufacturers data logger. Easily configure and collect data using the browser-based graphical user interface with all standard web browsers on PCs, tablets and smart phones. It’s rugged build, and technologically advanced system makes the Amazon Bubbler an attractive solution for real-time monitoring and data collection.

Amazon Water Level Bubbler

The new Amazon water level bubbler is the most advanced water level and long-term flow monitoring system available. The WaterLOG products backed by years of YSI manufacturing and support/service make the Amazon a must have for bubblers and water level projects.

Overview

The Amazon provides a continuous air bubble and an integrated pressure sensor that measures the pressure required to push the bubble out of the orifice line, which is the line pressure. The line pressure value measured in psi is then converted into the desired units of measurement to represent water level.

The Amazon can be used as a stand-alone unit or sensor with a full suite of communication protocols including SDI-12, MODBUS via RS-485 or TCP, and 4-20mA. The Amazon requires no special software and is easily configured with an optional display and or web browser GUI.  YSI’s water level team of professionals have been providing bubbler support for over 20 years.

Key features unique to the Amazon Bubbler System:

Stand Alone System - The Amazon can be used as a sensor connected to other recorder devises; data logger, PLC, RTU, etc. However, at a substantial cost savings, it can also be used as a stand-alone device, eliminating the need of an external recording device. Data values recorded by the Amazon can be copied directly to a USB Flash Drive and imported to the PC.
Browser Based Software - The Amazon’s initiative, easy to use software is browser based, which eliminates the need for proprietary software being installed on the PC. Access the Amazon software from any internet device that has Wi-Fi or USB connection functionality.

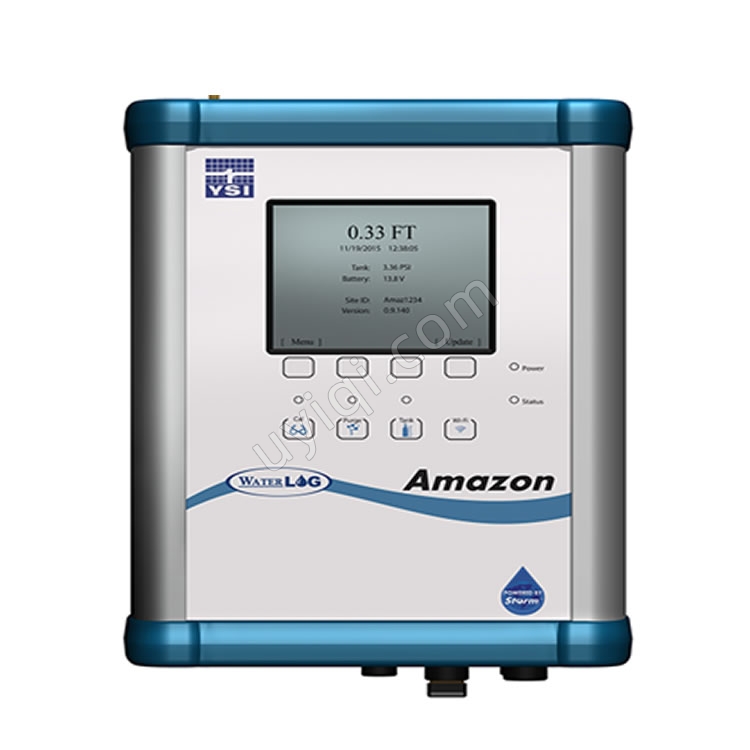

Key Pad Display - As an optional interface, the Amazon uses a Sharp® Memory LCD display. This provides the convenience of continuous display of data with the cost savings of low power usage. The display is provided as an option to the Amazon. For applications where an external display is not required, the Amazon can be purchased without the display.
Communication - Multiple communication options are available to insure that the Amazon can interface with any data logger, PLC, or RTU. These options include; SDI-12, MODBUS (over IP or RS-485), and 4 to 20 mA. Via the Ethernet port, the Amazon can push data over the internet directly to HydroSphere, our data hosting solution.
Measurement Range - Three range options are available to provide the highest measurement accuracy. With an industry leading accuracy of 0.02% of Full Scale; the 0 to 10 m range provides an accuracy of ±2 mm, the 0 to 20 m range has an accuracy of ±4.25 mm, and the 0 to 35 m range has an accuracy of ±7 mm.

Specifications

Accuracy：
Pressure:  Less than or equal to 0.02% of full scale output (FSO) over temperature range

Autostable:Drift is less than ±0.05% of FSO per year

Bubbler Gas Delivery    ：
Gas Flow Technology: Constant mass Technology
Gas Flow Control:  Bubble rate is user programmable from 30 to 120 bubbles

Certifications：NEMA 4 enclosure

Compressor：Piston Compressor, Low duty cycle (15 hours typical runtime per year at 60 bubbles per minute into 12 ft. (3.65 m) (purges not included)

Connectivity / Communications：SDI-12, RS-485, 4-20mA Output, *Cell modem is currently under development

Connector：Quick Connect Phoenix Connectors; 2-position quick connect for power, 5-position quick connect for SDI-12, 4 to 20mA, and RS-485; Pressure Inlet: 1/8” (3.81 cm) female NPT

Material    Housing: Aluminum, Atmospheric Vent: Sintered bronze, #10-32

Measurement Range    ：
0 to 15 PSI:  Depth - 0 to 34.6 ft (10.54 m), Accuracy - ±0.007 ft (2.1 mm)
0 to 30 PSI:  Depth - 0 to 69.20 ft (21 m), Accuracy - ±0.014 ft (4.26 mm)
0 to 50 PSI:  Depth - 0 to 115.34 ft (35.15 m), Accuracy - ±0.02333 ft (7.11mm)

Operating Temperature：-40° to +60° C

Power：10.0 to 16.5 V DC

Purge Functions：Purge Pressure Level: User Selectable 30 PSI to 90 PSI; Options: Manual, SDI driven purge, Purge sustain option (10-30S), Automatic/programmable

Size：
12.25 in. L x 8.75 in. W x 5.75 in. H 311.15 mm L x 222.25 mm W x 146.05 mm H; Weight: 12.0 lbs (5.44kg)

Storage Temperature：-60° to + 80° C

Warranty:2 years

---
