產品名稱：迷你油水界面計
品牌：Solinst
產地：加拿大
型號：122M

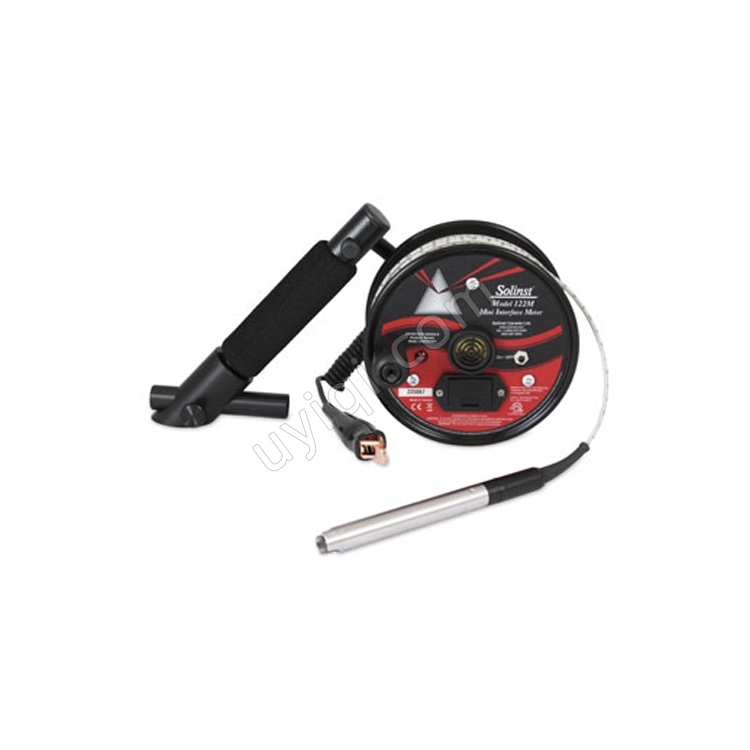

122M迷你油水界面計帶有 PVDF 激光標記電纜的 122M 型迷你接口儀表是 122 型的一個方便的小型版本，可以輕松裝入背包中。

Solinst 迷你油/水界面計可清晰準確地測量油井和儲罐中的產品液位和厚度。輕（浮動）非水相液體 (LNAPL) 和稠密（下沉）非水相液體 (DNAPL) 的測定既快速又簡單。

帶有激光標記電纜的 122M 型迷你接口儀表是一個方便的小型版本，可以輕松放入背包或可選的定制迷你手提箱中。它使用 25 m 或 80 ft 長的窄激光標記電纜。

Mini Interface Meter 增強型電子設備包括自動電路測試；300小時的準時電池壽命；清晰的信號；和高精度。這些電路由一個標準的 9V 電池供電，該電池安裝在面板上易于取用的抽屜中。

還提供標準的 Solinst 122 型接口儀，帶有激光標記的扁平膠帶，長度可達 300 m (1000 ft)。




探測：

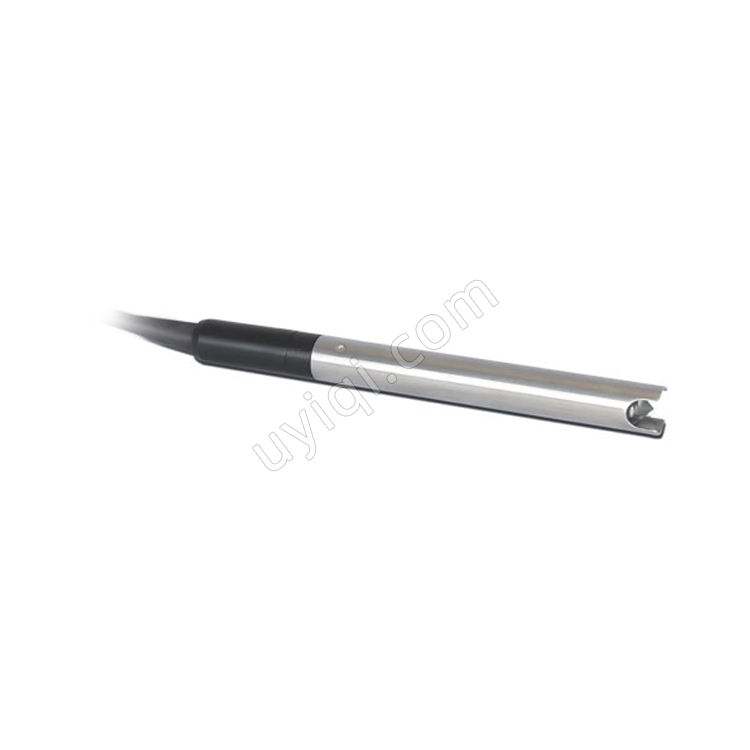

122M 使用直徑為 16 mm (5/8") 和不銹鋼的 P8 探頭。它是耐壓的，高達 500 psi。光束從 Hydex 錐形尖端內發射。尖端受到保護由一個完整的不銹鋼防護罩組成，非常適合絕大多數產品監控情況。每個儀表都包含一個清潔刷。



激光打標電纜：
該電纜可溯源至 NIST 和歐盟測量標準。

3 毫米 (0.12") 同軸電纜具有耐用的護套，每毫米或每 1/100 英尺都有永久性激光標記。電纜具有編織銅外導體、絞合不銹鋼中心導體和光滑的耐化學腐蝕表面，易于操作去污。

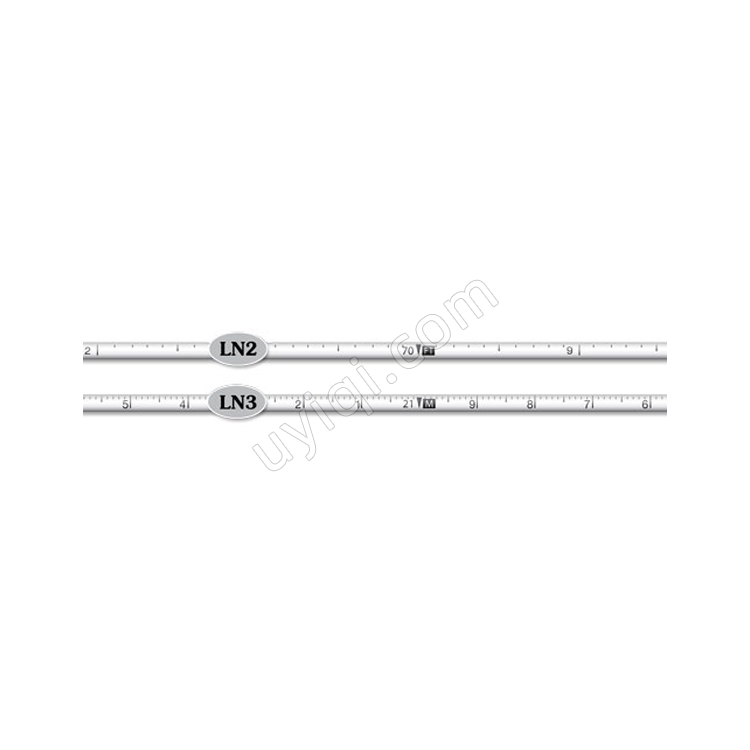

LN2：英尺和十分之一：每 1/100 英尺標記一次。
LN3：米和厘米：每毫米標記一次。




加拿大Solinst迷你油水界面計特征：

傳感器精度達 1.0 毫米或 1/200 英尺
經過本質安全認證
16 mm (5/8") 直徑探頭
易于使用的電池：至少 300 小時的使用壽命
具有自動電路測試功能的穩定電子設備
緊湊且易于在背包中運輸
專為惡劣的現場使用而設計

加拿大Solinst迷你油水界面計經營原則：

產品（非導電液體）= 穩定的燈光和色調

水（導電液體）=間歇性光和音

為了檢測液體，122M 型迷你接口儀表使用紅外光束和檢測器。當探頭進入液體時，光束被折射離開檢測器，從而激活可聽見的音調和光。如果液體是非導電油/產品，則信號是穩定的。如果液體是導電的（水），則水的導電性會形成一個導電回路。這會覆蓋紅外線電路，并且音調和光線是間歇性的。

兩個傳感器使用完全相同的零點，精度高達 1.0 毫米或 1/200 英尺。高精度使傳感器能夠檢測到水面上**輕微的油光。


危險場所使用：

帶電纜的 122M 型迷你接口儀表已獲得 QPS 的批準，可用于基于 CSA 標準的 I 類、Div 1、C&D 組的危險場所。它還通過了指令 94/9/EC 的 ATEX 認證，如 II 3 G Ex ic IIB T4 Gc。

當儀表在潛在爆炸性環境中使用時，接地電纜是安全必需品。它還確保電子設備得到適當?shù)谋Ｗo。



中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

Solinst Mini Oil/Water Interface Meters give clear and accurate measurements of product level and thickness in wells and tanks. Determination of both light (floating) non-aqueous phase liquids (LNAPL) and dense (sinking) non-aqueous phase liquids (DNAPL) is quick and easy.

The Model 122M Mini Interface Meter with laser marked cable is a convenient small version, which can easily fit in a backpack or an optional custom mini carry case. It uses narrow laser marked cable in 25 m or 80 ft lengths.

The Mini Interface Meter enhanced electronics include automatic circuitry testing; 300 hours of on-time battery life; clear signals; and high accuracy. The circuits are powered by one standard 9V battery housed in easy-access drawer in the faceplate.

Also available is the standard Solinst Model 122 Interface Meter with laser marked flat tape in lengths up to 300 m (1000 ft).


Probe：
The 122M uses the P8 Probe, which is 16 mm (5/8") in diameter and stainless steel. It is pressure proof, up to 500 psi. The beam is emitted from within a Hydex cone-shaped tip. The tip is protected by an integral stainless steel shield, and is excellent for the vast majority of product monitoring situations. A cleaning brush is included with each Meter.


Laser Marked Cable：
The cable is traceable to NIST and EU measurement standards.

The 3 mm (0.12") coaxial cable has a durable jacket with permanent laser markings each millimeter or every 1/100 ft. The cable has a braided copper outer conductor, a stranded stainless steel central conductor, and a smooth chemicalresistant surface that is easy to decontaminate.

LN2: Feet and tenths: with markings every 1/100 ft.
LN3: Meters and centimeters: with markings every mm.


Features：
Sensor accuracy to 1.0 mm or 1/200 ft
Certified intrinsically safe
16 mm (5/8") diameter probe
Easy access battery: minimum 300 hours of life
Stable electronics with automatic circuitry testing
Compact and easy to transport in a backpack
Designed for rugged field use


Operating Principles：
Product (Non-conductive liquid) = Steady light and tone

Water (Conductive liquid) = Intermittent light and tone

To detect liquids, the Model 122M Mini Interface Meters use an infra-red beam and detector. When the probe enters a liquid the beam is refracted away from the detector which activates an audible tone and light. If the liquid is a non-conductive oil/product the signals are steady. If the liquid is conductive (water), the conductivity of the water completes a conductivity circuit. This overrides the infra-red circuit, and the tone and light are intermittent.

Both sensors use exactly the same zero point, giving accuracy as good as 1.0 mm or 1/200 ft. The high accuracy enables the sensors to detect the slightest sheen of oil on the surface of the water.



Hazardous Locations Use：
The Model 122M Mini Interface Meter with cable has been approved by QPS for use in hazardous locations, Class I, Div 1, Groups C&D based on CSA Standards. It is also ATEX certified under directive 94/9/EC, as II 3 G Ex ic IIB T4 Gc.

The ground cable is a safety essential when the meter is used in potentially explosive environments. It also ensures that the electronics are properly protected.

---
