產品名稱：不銹鋼氣囊泵
品牌：Solinst
產地：加拿大
型號：407


407型不銹鋼氣囊泵可在所有應用中提供一致、準確、可靠的地下水樣品。確保在操作過程中不接觸空氣/水，泵是 VOC 采樣的理想選擇。
氣囊確保驅動空氣或氣體不接觸樣品，從而避免樣品脫氣或污染。Solinst 膀胱泵堅固耐用。PTFE 氣囊非常適合奉獻，而更便宜的聚乙烯氣囊可供那些喜歡在每次使用后更換氣囊的人使用。只需幾分鐘即可在現場輕松更換膀胱和進氣過濾器。無需特殊工具。
不銹鋼泵非常適合常規流量或低流量采樣，可以從地面以下 150 m (500 ft) 的深度提升。



低流量吹掃和取樣：

低流量采樣通過減少湍流提供優質樣品。它還減少了吹掃量，從而減少了采樣時間和處理成本。使用Solinst 464 型電子泵控制單元時，可以調整Solinst 膀胱泵以提供 100 毫升/分鐘的連續輸出?；蚋?。
在低流量采樣期間使用流通池系統，可以在清洗水流動時在線連續分析它，以便在讀數穩定后立即開始采樣。
封隔器也可用于進一步減少吹掃量并加快采樣時間。



407型不銹鋼氣囊泵的特征：

不銹鋼： 1.66" Ø (42 mm) 和 1" Ø (25 mm)，316 不銹鋼主體。
非垂直應用：泵幾乎可以在任何角度有效運行，可以放置在垃圾填埋場、尾礦、儲罐或污染物羽流下。
滲濾液/產品泵送：氣動驅動泵非常適合泵送污染液體?？梢暂p松經濟地泵送強溶劑和腐蝕性化學品。
經受住干抽、臟空氣和沙子： Solinst 氣囊不會因在含有沉積物的水中或干抽條件下運行而損壞。
防凍套件：可選配件可用于防止樣品管線中的凍結。



407型不銹鋼氣囊泵的好處：

高質量樣品：始終如一的準確樣品，具有出色的 VOC 樣品完整性。
簡單：控制器、空氣壓縮機和流通池可以由一個人輕松運輸到任何地點。通過壓縮配件連接到泵。
節省成本：減少重復抽樣的需要，縮短每輪抽樣所需的時間。低吹掃體積確?？焖偃?。
氣囊：耐用的不含 PFAS 的 PTFE 氣囊非常適合奉獻。也可以使用廉價的聚乙烯。


407型不銹鋼氣囊泵由 316 不銹鋼制成，并配有 PTFE 止回球。**常用的氣囊是 PTFE，但也可以使用聚乙烯氣囊。這是大多數類型的市政、工業和一般環境應用的理想采樣泵，尤其是在樣品的 VOC 分析很重要的情況下。

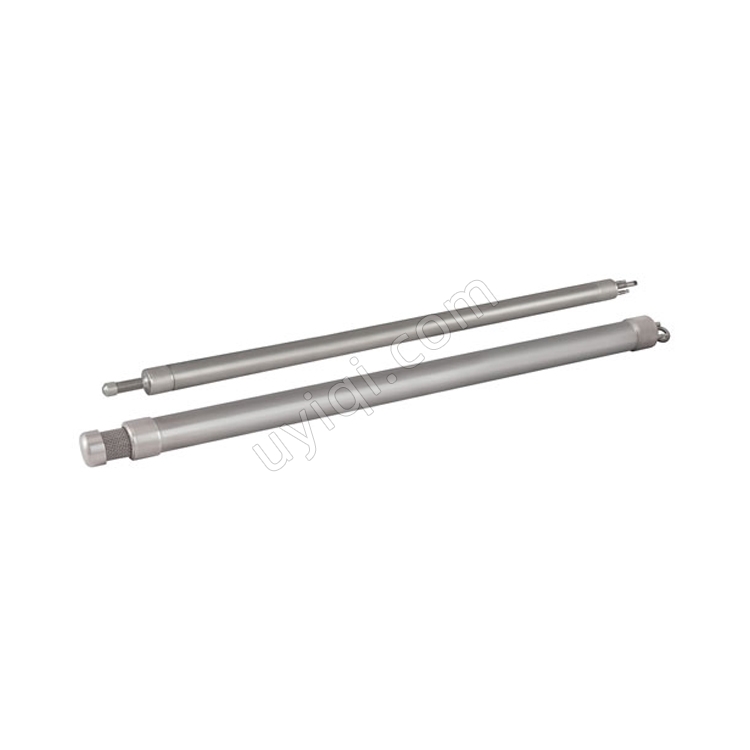

標準 Solinst 氣囊泵的泵體是方便的 1.66" 直徑（42 毫米），長度為 2 英尺和 4 英尺（0.6 m 和 1.2 m）。1" 直徑。(25 mm) 氣囊泵也可用于較窄的應用和滑鐵盧多級系統。


Solinst 氣囊泵有 1" 和 1.66"（25 毫米和 42 毫米）不銹鋼材質可供選擇。



中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

Bladder Pump：
The Solinst Bladder Pump allows consistent, high quality samples in all types of applications. It offers excellent performance and reliability. With Solinst Bladder Pumps there is the assurance that there is no air/water contact during sampling. It meets the most rigorous US EPA standards for VOC groundwater monitoring.

The bladder ensures that drive air or gas does not contact the sample, thus avoiding degassing or contamination of the sample. Solinst Bladder Pumps are rugged and long lasting. PTFE bladders are ideal for dedication, while less expensive polyethylene bladders are available for those that prefer to change bladders after each use. Bladders and intake filters are easily replaced in the field in just a few minutes. No special tools required.

Excellent for either regular flow or low flow sampling, the stainless steel pumps can lift from depths up to 150 m (500 ft) below grade.



Low Flow Purge and Sampling：
Low flow sampling offers excellent quality samples by reducing turbulence. It also reduces purge volumes, and thus sampling time and disposal costs. When using a Solinst Model 464 Electronic Pump Control Unit, the Solinst Bladder Pump can be adjusted to provide continuous output of 100 ml/min. or less.

Use of a Flow-Through Cell System during low flow sampling, allows the continuous analysis of purge water, in-line, as it flows, so that sampling can begin as soon as the readings stabilize.

Packers are also available to further reduce purge volumes and to speed sampling times.



Features：
Stainless Steel: 1.66" Ø (42 mm) and 1" Ø (25 mm) with 316 stainless steel body.
Non-Vertical Applications: Pumps operate effectively at almost any angle and can be placed under landfills, tailings, storage tanks or contaminant plumes.
Leachate/Product Pumping: Pneumatic drive pumps are well suited for pumping contaminant liquids. Strong solvents and corrosive chemicals can be easily and economically pumped.
Survives Dry Pumping, Dirty Air and Sand: Solinst bladders are not damaged by operation in sediment laden water, or in dry pumping conditions.
Freeze Protection Kit: Optional accessory available to prevent freezing in the sample line.



Benefits：
High Quality Samples: Consistently accurate samples with excellent VOC sample integrity.
Simplicity: The controller, air compressor and flow-through cell can be easily transported by one person to any site. Hookup to the pump is by compression fittings.
Cost Savings: Reduced need for repeat sampling and shorter time required for each sampling round. Low purge volumes ensure rapid sampling.
Bladders: Durable PFAS-free PTFE bladders are ideal for dedication. Inexpensive polyethylene is also available.


The Solinst Bladder Pump：
Solinst Bladder Pumps are manufactured from 316 stainless steel and have PTFE check balls. The bladder most frequently used is PTFE, however polyethylene bladders are also available. This is the ideal sampling pump for most types of municipal, industrial and general environmental applications, especially where VOC analysis of the sample is important.

The pump body of the standard Solinst Bladder Pump is a convenient 1.66" dia. (42 mm) and comes in lengths of 2 ft and 4 ft (0.6 m and 1.2 m). 1" dia. (25 mm) bladder pumps are also available for narrower applications and for use in the Waterloo Multilevel System.

---
