產品名稱: 水位計

型號系列:WL500

品牌:global water

產地:美國

價格:成交價格需聯系客服

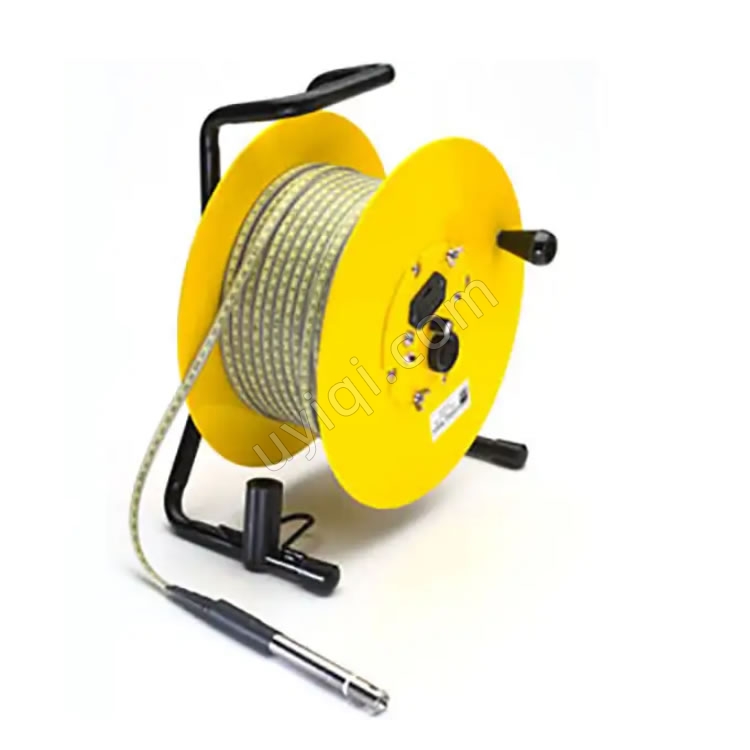

美國global water水位計WL500

Global Water 的 WL500 井位測深儀為井水位測量設定了新的精度標準。水位計符合或超過聯邦規范 US GGG-T-106E（美國）或 EEC CLASS II（歐洲），保證精度為 0.008%。

美國global water水位計WL500概述

Global Water 的 WL500 井位測深儀是高精度檢測水位和井底的理想選擇。即使井沒有套管，它也可以在有落水和重油浮油的井中無故障運行。

美國global water水位計WL500主要特征：

• 精確測量、簡單和耐用
• 聚碳酸酯堅固的卷軸
• 耐用的聚酯粉末涂層鋼架
• 耐腐蝕不銹鋼配件
• 符合人體工程學的大號剎車和軟握乙烯基纏繞手柄
• 防水防塵封裝電子元件
• 堅固而準確帶有不銹鋼導體的 NTS 認證膠帶
• 全深度不銹鋼和特氟龍?zhí)筋^
• 膠帶和探頭之間的持久柔性連接
• 以 1 英尺和 0.01 英尺為間隔標記的膠帶，長可達 2000 英尺
• 音頻警報蜂鳴器和 LED 指示接觸水

水位測深儀使用直徑為 5/8 英寸（16 毫米）的全深度不銹鋼和聚四氟乙烯探頭。水位計的傳感器電子元件封裝在防水防塵外殼中。水位計的電子模塊可以拆除，以便對整個卷軸和磁帶進行清潔和去污。扁彈簧鋼芯確保測深儀在大小直徑井中完全筆直懸掛。與扁平白色膠帶相比，這提供了無與倫比的準確性，其中膠帶中的扭結會引入輕微的誤差，除了水的位移會改變靜態水平。

當水位探測器的探頭組件與水面接觸時，一個明亮的 LED 會發光，并且卷盤上會發出蜂鳴聲。水位探測儀使用專門設計的尖端檢測井底，當?shù)竭_井底時，探測儀的音頻警報停止。

井位測深儀由堅固的 NTS 認證聚乙烯夾套卷尺組成，可準確讀取 0.01 英尺或 1 毫米。磁帶卷盤由耐腐蝕的聚碳酸酯制成（或者，對于電纜長度超過 400 英尺的裝置，由較輕的鋁制成

測深儀由電池供電，因此不存在外部電源電擊的危險。兩個導體不需要單獨的接地連接，因此儀器在無套管測試孔或巖石中的無套管井中同樣可以正常工作。從套管泄漏或水位穿孔進入井中的水不會影響深度計的測量。

美國global water水位計WL500規格

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：


Global Water’s WL500 Well Level Sounder sets a new precision standard for well water level measurement. The Water Level Sounder meets or exceeds federal specification US GGG-T-106E (USA) or EEC CLASS II (Europe) for a guaranteed accuracy of 0.008%.

Overview
Global Water's WL500 Well Level Sounder is ideal for detecting water levels and well bottoms with high precision. It is provides trouble free operation in wells with falling water and heavy oils slicks, even if the well is not cased.

Key Features:

• Precision measurement, simplicity, and durability
• Polycarbonate sturdy reel
• Durable polyester powder-coated steel frame
• Corrosion-resistant stainless steel fittings
• Large, ergonomic brake and soft grip vinyl winding handle
• Water and dust-proof encapsulated electronics
• Strong and accurate NTS certified tape with stainless conductors
• Full depth stainless steel and Teflon probe
• Long lasting flexible link between the tape and probe
• Tape marked in 1 foot and 0.01 foot intervals with up to 2000 feet in length
• Audio alert beeper and LED indicate contact with the water

The Water Level Sounder uses a full depth-rated stainless steel and Teflon probe that is 5/8-inch (16 mm) in diameter. The water level sounder's sensor electronics are encapsulated in a water and dust proof housing. The water level sounder's electronics module can be removed so that the entire reel and tape can be cleaned and decontaminated. The flat spring steel core ensures that the level sounder will hang perfectly straight in large and small diameter wells. This provides unparalleled accuracy when compared to the flat white tapes, where kinks in the tape introduce slight errors, in addition to the displacement of water changing the static level.

When the water level sounder's probe assembly makes contact with the surface of the water, a bright LED glows and a beeper sounds on the reel. The water level sounder detects the bottom of the well using a specially engineered tip that causes the sounder's audio alarm to cease when the bottom of the well is reached.

The well level sounder consists of a strong NTS-certified polyethylene jacketed measuring tape that will accurately read to 0.01 foot or 1 mm. The tape reels are built of resistant polycarbonate (or, for units with over 400 ft cable, of lighter aluminum

The depth sounder is battery operated, thus there is no danger of shock from an outside power supply. Two conductors make a separate ground connection unnecessary, so the instrument will function equally well in uncased test holes or in uncased wells in rock. Water entering the well from casing leaks or perforations about the water level will not affect the depth gauge's measurements.

---

提示：“美國global water品牌WL500產品”內容及圖片來自廠商官網、翻譯或互聯網引用等，內容僅供參考，以最終簽訂合同為準，如有差錯或異議可聯系我們更改。
