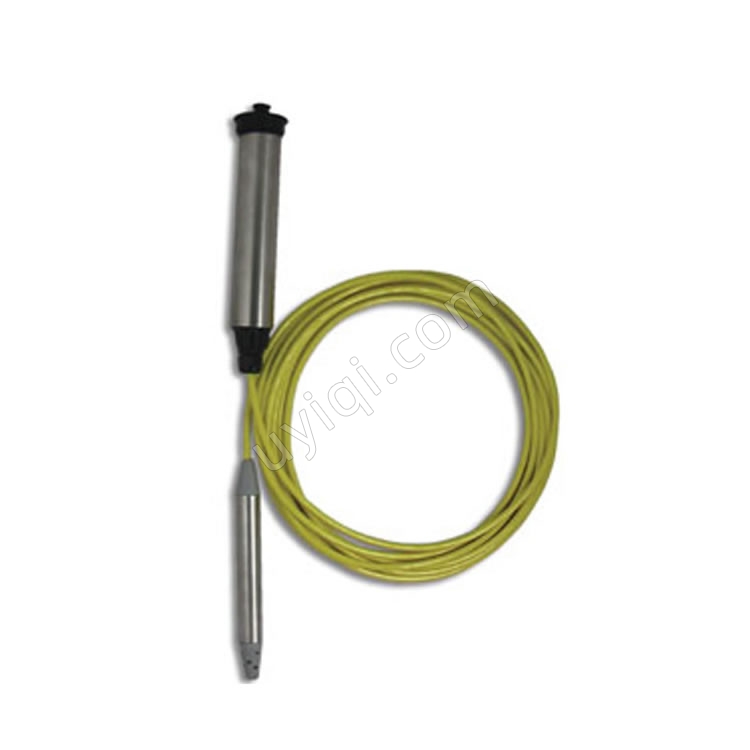

產品名稱: 水流記錄儀

型號系列:FL16

品牌:global water

產地:美國

價格:成交價格需聯系客服


FL16 水流記錄儀徹底改變了流量數據收集的應用，例如流入和滲透研究、雨水和廢水收集系統、明渠和許多其他重力流系統。FL16 水流記錄儀將記錄下水道和排水管道以及其他明渠應用（如水槽、堰和方形渠道）中的 81,000 多個深度、溫度、水流和流速讀數。專門設計的防污水位傳感器的工作深度低至 ½ 英寸，無需進入密閉空間即可部署在檢修孔和其他難以進入的區域。


美國global water水流記錄儀FL16概述

特征
• 記錄兩個模擬通道：流量和溫度
• 緊湊、自供電且易于使用
• 提供 USB 通信選項
• 用戶可編程啟動和停止警報、工程單位和現場校準設置
• 傳感器部署無需進入受限空間
• 用戶友好的流量監控軟件，與所有基于 Windows 的操作系統兼容
• 濕濕傳感器消除了通氣管問題
• 自動氣壓和溫度補償

FL16 Water Flow Logger 的排氣式水流傳感器采用船用級環氧樹脂完全封裝。水流量傳感器的電子元件采用封裝，因此水分不會通過 O 形密封圈泄漏或進入通風管并導致漂移或傳感器故障。通氣管直接密封在濕濕傳感元件上。

FL16 Water Flow Logger 用戶友好的基于 Windows 的軟件專為使用曼寧方程計算部分填充的下水道和排水管道中的水流量而定制，帶有用于選擇和輸入必要信息的下拉菜單。水流記錄儀軟件具有獨特的校準功能，允許用戶查看計算的水流速度，將其與實際測量數據進行比較，并調整水流參數以校準特定應用的水流條件。提供了超過 40 個標準水槽和堰的水流方程，以及用戶可定義的自定義查找表，可用于將水位轉換為幾乎任何應用的流量。

提供了超過 40 個標準水槽和堰的水流方程，以及用戶可定義的自定義查找表，可用于將水位轉換為幾乎任何應用的流量。配置完成后，所有設置和水流量參數都存儲在水流量記錄儀的內存中，并在連接后自動上傳到軟件。此信息也可以保存到文件中以供以后使用，從而允許在多個位置部署水流記錄器，而無需在每次移動水流記錄器時重新輸入水流參數。水流記錄儀使用兩個標準的 9 伏電池運行，它們會對其進行監控，因此您永遠不會因電池沒電而措手不及。如果您無法在 9V 電池發生故障之前更換電池，第三塊板載鋰電池可確保您的數據安全。可選的保護外殼包括用于將水流量記錄儀安裝到人孔臺階或其他結構的硬件，并且還允許在現場輕松安裝和更換。

美國global water水流記錄儀FL16規格

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：


The FL16 Water Flow Logger revolutionizes flow data collection for applications such as inflow & infiltration studies, stormwater and wastewater collection systems, open channels and a host of other gravity flow systems. The FL16 Water Flow Loggers will record over 81,000 depth, temperature, water flow and velocity readings in sewer and drainage pipes, as well as other open channel applications such as flumes, weirs and square channels. The specially engineered, non-fouling, water level sensor works in depths as little as ½ inch and allows for deployment in manholes and other difficult to access areas without the need to enter the confined space.

Overview

FEATURES
• Records two analog channels: Flow and Temperature
• Compact, self-powered and easy to use
• USB communication option available
• User programmable start and stop alarms, engineering units, and field calibration setup
• No confined space entry required for sensor deployment
• User friendly flow monitoring software that is compatible with all Windows-based operating systems
• Wet-wet transducer eliminates vent tube concerns
• Automatic barometric pressure and temperature compensation

The FL16 Water Flow Logger’s vented water flow sensor is fully encapsulated with marine-grade epoxy. The water flow sensor’s electronics are encapsulated so moisture will never leak in through O-ring seals or work its way into the vent tube and cause drift or sensor failure. The vent tube is sealed directly to the wet-wet sensing element.

FL16 Water Flow Logger’s user-friendly Windows-based software is tailored specifically for calculating water flows in partially filled sewer and drainage pipes using the Manning’s Equation, with pull-down menus for selecting and entering the necessary information. The Water Flow Logger software has a unique calibration feature which allows users to view calculated water velocity, compare this to actual measured data, and adjust the water flow parameters to calibrate for the water flow conditions of a specific application. Water flow equations for over 40 standard flumes and weirs are provided, as well as user-definable custom lookup tables which can be used to convert water level to flow for virtually any application.

Water flow equations for over 40 standard flumes and weirs are provided, as well as user-definable custom lookup tables which can be used to convert water level to flow for virtually any application. Once configured, all setup and water flow parameters are stored in the Water Flow Recorder's memory and are uploaded to the software automatically upon connection. This information can also be saved to a file for later use, allowing Water Flow Recorders to be deployed in multiple locations without the need to re-enter the water flow parameters each time the Water Flow Recorders are moved. The Water Flow Recorders operate on two standard 9 volt batteries, which they monitor so you are never caught off guard with dead batteries. A third onboard lithium battery ensures your data will be safe in the event you are unable to change the 9V batteries before they fail. An optional protective housing includes hardware for mounting the Water Flow Recorders to a manhole step or other structure and also allows for easy installation and replacement in the field.

---
